Hammond Manufacturing Electrical Enclosures | Stainless Steel - Junction Boxes | 1414 N4 SS Range

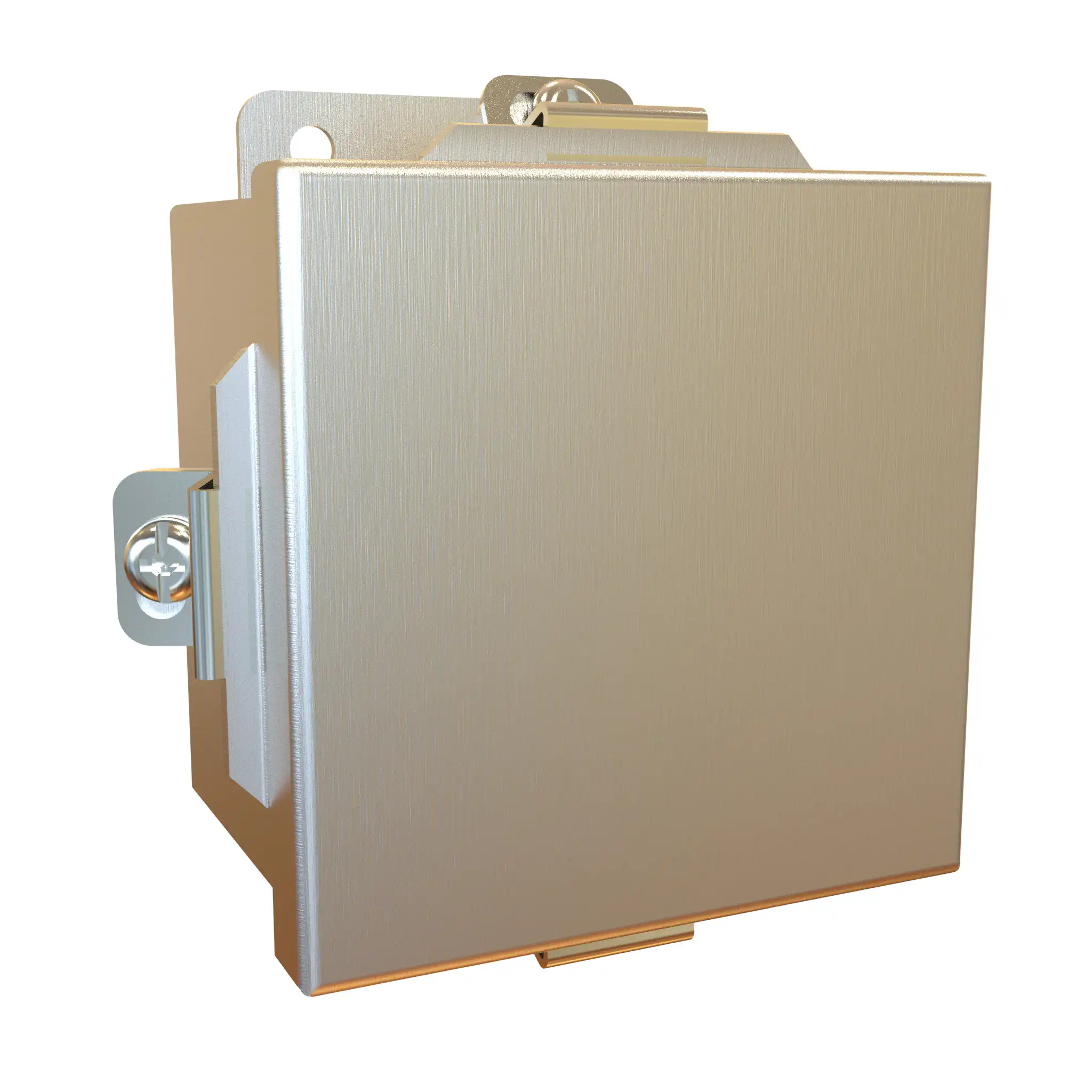

1414 N4 SS Series Type 4X Stainless Steel Junction Box
Lift-Off Cover With Clamps
Product Application:
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
Product Construction:
  • Formed from 14 gauge 304 stainless steel.
  • Smooth, continuously welded seams.
  • Welded brackets provide for enclosure mounting.
  • Lift-Off cover is secured with stainless steel clamps and screws.
  • Seamless poured-in place gasket.
  • All models larger than 4" x 4" include a removable 14 gauge inner panel.
  • Tapped studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Product Finish:
  • Cover and enclosure are natural stainless steel with a smooth brushed finish.
  • Removable inner panel is finished in white powder coating.
Product Standards:
  • UL 508A Type R, 4, 4X, 12 and 13
  • CSA Type 3R, 4, 4X, 12 and 13.
  • Complies with:
    • NEMA Type 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66
Product Resources:
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn

Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosure and accessories (where applicable). All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of holes and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. For more information on customisation services, please contact us.
1414 N4 SS Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd
Product Options
Part No Product Information 1+ 10+ 25+ More
1414N4SSA Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
1414N4SSC4 Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
1414N4SSE Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
1414N4SSG Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
1414N4SSI Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
1414N4SSK Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
1414N4SSM6 Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
1414N4SSO6 Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
For pricing and availability please contact us
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
