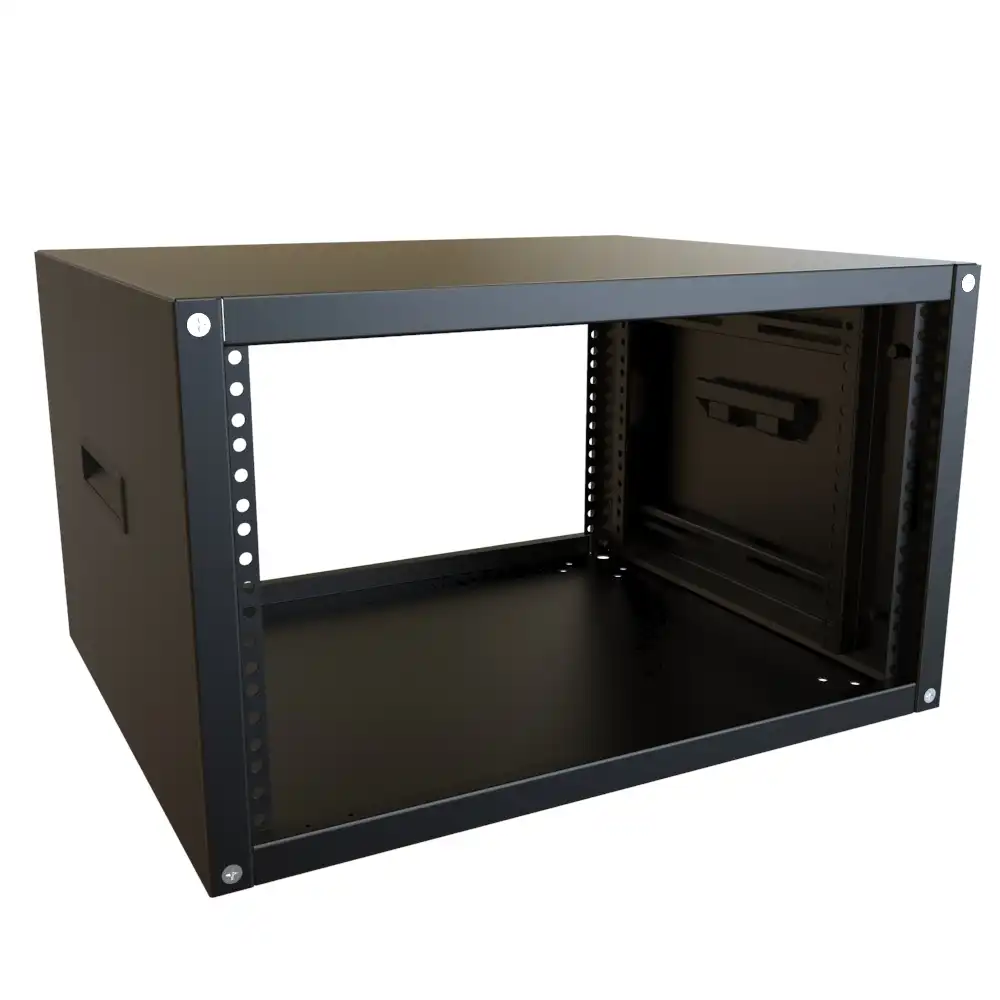

RCH Series Test and Measurement Rack Cabinet
800 lbs (363 kg) Weight Capacity
Product Features
  • Constructed in 16 gauge steel.
  • Two pairs of adjustable depth 19" EIA compliant round hole punched rails.
  • Includes rubber feet, two lifting handles, a starter pack of (16) 10-32 clip nuts.
  • Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included).
  • The front and back lip are 0.585" (14mm) so usable depth is reduced by 1.17" (30mm).
  • 800 lbs (363 kg) load rating.
  • Finished in textured RAL 9005 black or RAL 7035 light grey powder paint.
  • Knockdown design ships unassembled for easy handling and shipping protection.
  • TAA compliant for GSA schedule purchases.
  • RoHS compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.
Product Resources
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn

Hammond Manufacturing Rack Systems

KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Rack Systems product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd.
RCH Series - Hammond Manufacturing Rack Systems - KGA Enclosures Ltd
Product Options
Cabinets With Solid Side Panels
Part No Colour Height Width Depth 1+ 10+ 25+ More
RCHS1900817BK1 Black 273mm10.75" 533mm21.00" 445mm17.50" £327.53 £301.32 £294.77 More....
RCHS1900817LG1 Light Grey 273mm10.75" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHS1901017BK1 Black 318mm12.50" 533mm21.00" 445mm17.50" £337.65 £310.64 £303.89 More....
RCHS1901017LG1 Light Grey 318mm12.50" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHS1901024BK1 Black 318mm12.50" 533mm21.00" 622mm24.50" £399.55 £367.58 £359.59 More....
RCHS1901024LG1 Light Grey 318mm12.50" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHS1901031BK1 Black 318mm12.50" 533mm21.00" 800mm31.50" £481.16 £442.67 £433.04 More....
RCHS1901031LG1 Light Grey 318mm12.50" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
RCHS1901417BK1 Black 406mm16.00" 533mm21.00" 445mm17.50" £358.45 £329.78 £322.61 More....
RCHS1901417LG1 Light Grey 406mm16.00" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHS1901424BK1 Black 406mm16.00" 533mm21.00" 622mm24.50" £440.08 £404.87 £396.07 More....
RCHS1901424LG1 Light Grey 406mm16.00" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHS1901431BK1 Black 406mm16.00" 533mm21.00" 800mm31.50" £512.10 £471.13 £460.89 More....
RCHS1901431LG1 Light Grey 406mm16.00" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
RCHS1901717BK1 Black 495mm19.50" 533mm21.00" 445mm17.50" £358.45 £329.78 £322.61 More....
RCHS1901717LG1 Light Grey 495mm19.50" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHS1901724BK1 Black 495mm19.50" 533mm21.00" 622mm24.50" £460.90 £424.02 £414.81 More....
RCHS1901724LG1 Light Grey 495mm19.50" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHS1901731BK1 Black 495mm19.50" 533mm21.00" 800mm31.50" £562.74 £517.73 £506.47 More....
RCHS1901731LG1 Light Grey 495mm19.50" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
RCHS1902217BK1 Black 629mm24.75" 533mm21.00" 445mm17.50" £388.85 £357.74 £349.97 More....
RCHS1902217LG1 Light Grey 629mm24.75" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHS1902224BK1 Black 629mm24.75" 533mm21.00" 622mm24.50" £476.65 £438.52 £428.98 More....
RCHS1902224LG1 Light Grey 629mm24.75" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHS1902231BK1 Black 629mm24.75" 533mm21.00" 800mm31.50" £601.01 £552.93 £540.91 More....
RCHS1902231LG1 Light Grey 629mm24.75" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
RCHS1902817BK1 Black 762mm30.00" 533mm21.00" 445mm17.50" £453.57 £417.29 £408.22 More....
RCHS1902817LG1 Light Grey 762mm30.00" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHS1902824BK1 Black 762mm30.00" 533mm21.00" 622mm24.50" £495.80 £456.13 £446.22 More....
RCHS1902824LG1 Light Grey 762mm30.00" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHS1902831BK1 Black 762mm30.00" 533mm21.00" 800mm31.50" £628.61 £578.32 £565.75 More....
RCHS1902831LG1 Light Grey 762mm30.00" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
Cabinets With Vented Side Panels
Part No Colour Height Width Depth 1+ 10+ 25+ More
RCHV1900817BK1 Black 273mm10.75" 533mm21.00" 445mm17.50" £337.65 £310.64 £303.89 More....
RCHV1900817LG1 Light Grey 273mm10.75" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHV1901017BK1 Black 318mm12.50" 533mm21.00" 445mm17.50" £366.35 £337.04 £329.72 More....
RCHV1901017LG1 Light Grey 318mm12.50" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHV1901024BK1 Black 318mm12.50" 533mm21.00" 622mm24.50" £399.55 £367.58 £359.59 More....
RCHV1901024LG1 Light Grey 318mm12.50" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHV1901031BK1 Black 318mm12.50" 533mm21.00" 800mm31.50" £481.16 £442.67 £433.04 More....
RCHV1901031LG1 Light Grey 318mm12.50" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
RCHV1901417BK1 Black 406mm16.00" 533mm21.00" 445mm17.50" £378.73 £348.43 £340.85 More....
RCHV1901417LG1 Light Grey 406mm16.00" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHV1901424BK1 Black 406mm16.00" 533mm21.00" 622mm24.50" £491.27 £451.97 £442.14 More....
RCHV1901424LG1 Light Grey 406mm16.00" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHV1901431BK1 Black 406mm16.00" 533mm21.00" 800mm31.50" £601.01 £552.93 £540.91 More....
RCHV1901431LG1 Light Grey 406mm16.00" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
RCHV1901717BK1 Black 495mm19.50" 533mm21.00" 445mm17.50" £389.42 £358.27 £350.48 More....
RCHV1901717LG1 Light Grey 495mm19.50" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHV1901724BK1 Black 495mm19.50" 533mm21.00" 622mm24.50" £507.58 £466.97 £456.82 More....
RCHV1901724LG1 Light Grey 495mm19.50" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHV1901731BK1 Black 495mm19.50" 533mm21.00" 800mm31.50" £630.85 £580.38 £567.76 More....
RCHV1901731LG1 Light Grey 495mm19.50" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
RCHV1902217BK1 Black 629mm24.75" 533mm21.00" 445mm17.50" £424.32 £390.37 £381.89 More....
RCHV1902217LG1 Light Grey 629mm24.75" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHV1902224BK1 Black 629mm24.75" 533mm21.00" 622mm24.50" £523.90 £481.99 £471.51 More....
RCHV1902224LG1 Light Grey 629mm24.75" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHV1902231BK1 Black 629mm24.75" 533mm21.00" 800mm31.50" £661.21 £608.31 £595.09 More....
RCHV1902231LG1 Light Grey 629mm24.75" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
RCHV1902817BK1 Black 762mm30.00" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHV1902817LG1 Light Grey 762mm30.00" 533mm21.00" 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHV1902824BK1 Black 762mm30.00" 533mm21.00" 622mm24.50" £545.86 £502.19 £491.27 More....
RCHV1902824LG1 Light Grey 762mm30.00" 533mm21.00" 622mm24.50" P.O.A. P.O.A. P.O.A. More....
RCHV1902831BK1 Black 762mm30.00" 533mm21.00" 800mm31.50" £691.05 £635.77 £621.95 More....
RCHV1902831LG1 Light Grey 762mm30.00" 533mm21.00" 800mm31.50" P.O.A. P.O.A. P.O.A. More....
Product Accessories
Replacement Cabinet Doors
Part No Colour Contents Material Height 1+ 10+ 25+ More
RCHD1908BK1 Black 1 Solid Locking Door 16 Gauge Steel 222mm8.75" £101.29 £93.19 £91.16 More....
RCHD1908LG1 Light Grey 1 Solid Locking Door 16 Gauge Steel 222mm8.75" P.O.A. P.O.A. P.O.A. More....
RCHD1910BK1 Black 1 Solid Locking Door 16 Gauge Steel 267mm10.50" £112.54 £103.54 £101.29 More....
RCHD1910LG1 Light Grey 1 Solid Locking Door 16 Gauge Steel 267mm10.50" P.O.A. P.O.A. P.O.A. More....
RCHD1914BK1 Black 1 Solid Locking Door 16 Gauge Steel 356mm14.00" £117.60 £108.19 £105.84 More....
RCHD1914LG1 Light Grey 1 Solid Locking Door 16 Gauge Steel 356mm14.00" P.O.A. P.O.A. P.O.A. More....
RCHD1917BK1 Black 1 Solid Locking Door 16 Gauge Steel 445mm17.50" £123.25 £113.39 £110.92 More....
RCHD1917LG1 Light Grey 1 Solid Locking Door 16 Gauge Steel 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHD1922BK1 Black 1 Solid Locking Door 16 Gauge Steel 578mm22.75" £133.37 £122.70 £120.04 More....
RCHD1922LG1 Light Grey 1 Solid Locking Door 16 Gauge Steel 578mm22.75" P.O.A. P.O.A. P.O.A. More....
RCHD1928BK1 Black 1 Solid Locking Door 16 Gauge Steel 711mm28.00" £140.11 £128.90 £126.10 More....
RCHD1928LG1 Light Grey 1 Solid Locking Door 16 Gauge Steel 711mm28.00" P.O.A. P.O.A. P.O.A. More....
For compatibility please view product data sheet
Replacement Mounting Rails
Part No Colour Length Width Height 1+ 10+ 25+ More
RCHR1908 Black n/an/a n/an/a 222mm8.75" P.O.A. P.O.A. P.O.A. More....
RCHR1910 Black n/an/a n/an/a 267mm10.50" P.O.A. P.O.A. P.O.A. More....
RCHR1914 Black n/an/a n/an/a 356mm14.00" P.O.A. P.O.A. P.O.A. More....
RCHR1917 Black n/an/a n/an/a 445mm17.50" P.O.A. P.O.A. P.O.A. More....
RCHR1922 Black n/an/a n/an/a 578mm22.75" P.O.A. P.O.A. P.O.A. More....
RCHR1928 Black n/an/a n/an/a 711mm28.00" P.O.A. P.O.A. P.O.A. More....
For compatibility please view product data sheet
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
