Hammond Manufacturing Power Distribution | Heavy Duty Power Strip | 1581 DP Range

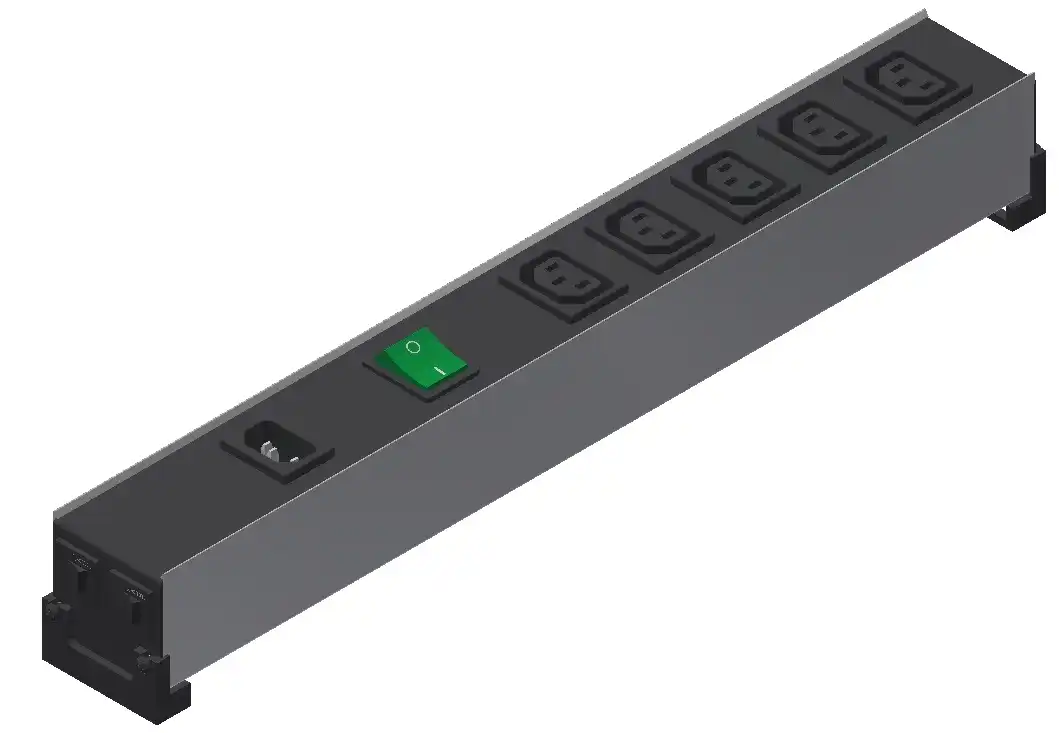

1581 DP Series Heavy Duty Outlet Strip
10A Double Pole | 100-240V | Front or Rear Facing C13 Outlets
Product Features:
  • On-Off switch is rocker type (double pole, single throw) with green light.
  • Rated 100-240VAC (TUV), 120-240VAC (UL) 10 A, 50/60 Hz. and designed for use with IEC power cords.
  • All metal housings - tough extruded aluminium case with black powder-coated steel cover/
  • Mounting feet (with keyhole slots) allow temporary work station mounting if desired.
Product Specifications:
  • One IEC 320 - C14 inlet, and 4, 5, 6 or 8 IEC 320 - C13 outlets.
  • Includes 10A circuit breakers to prevent accidental line overload.
  • cULus listed UL 62368-1 (2nd Edition), 2014-12-01, and CAN/CSA C22.2 No. 62368-1-14 (2nd Edition).
  • TÜV-SUD Certified to EN 62368-1:2014/A11:2017, and IEC 62368-1:2014 (2nd Edition).
  • TÜV-SUD tested for EMC compliance to EN 55032:2012 (CISPR 32:2012) and EN 55024:2010 (CISPR 24:2010).
  • CE compliant to the European Low Voltage Directive 2014/35/EU.
  • CE compliant to the European EMC Directive 2014/30/EU.
  • UKCA compliant to British Electrical Equipment (Safety) Regulations 2016 (S.I. 2016/1001).
  • UKCA compliant to British Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091).
  • TAA compliant for GSA Schedule purchases.
  • RoHS compliant.
  • Manufactured in North America.
Product Resources:
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn

Hammond Manufacturing Power Distribution
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Power Distribution product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosure and accessories (where applicable). All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of holes and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. For more information on customisation services, please contact us.
1581 DP Series - Hammond Manufacturing Power Distribution at KGA Enclosures Ltd
Product Options
Part No Colour Height Width Length 1+ 10+ 25+ More
1581H4DP Black/Anodised 59mm2.33" 54mm2.13" 349mm13.75" P.O.A. P.O.A. P.O.A. More....
1581H5DP Black/Anodised 59mm2.33" 54mm2.13" 419mm16.50" P.O.A. P.O.A. P.O.A. More....
1581H6DP Black/Anodised 59mm2.33" 54mm2.13" 419mm16.50" P.O.A. P.O.A. P.O.A. More....
1581H8DP Black/Anodised 59mm2.33" 54mm2.13" 502mm19.75" P.O.A. P.O.A. P.O.A. More....
For pricing and availability please contact us
Product Accessories
Replacement Mounting Foot
Part No Colour Product Information 1+ 10+ 25+ More
1584MF Black Click link for more information P.O.A. P.O.A. P.O.A. More....
Please refer to the product data sheet for product compatibility
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
