Modular Console System

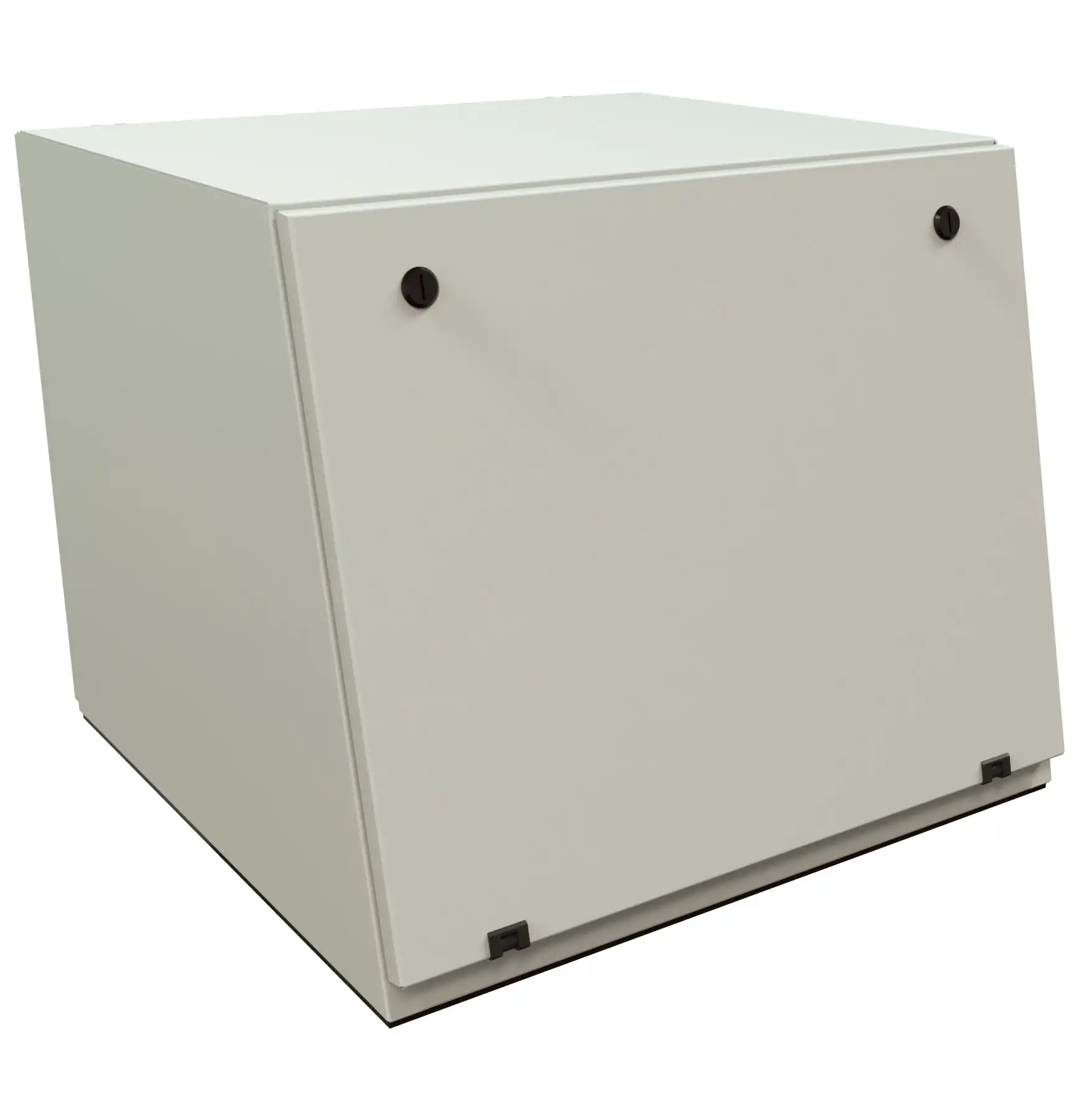

2000 Series Type 4, 4X Mild Steel and Stainless Steel Turret Units

Product Application
Ideal as a housing for video screens. Flexible design provides panel mount or rack mount capabilities for a variety of applications. Generally used in combinations with other modular console components (i.e. base, pedestal, and / or desk). Available in either Standard (supported by Base, Pedestal, or Standard Desk) or Deep (supported by Deep Desk only) format. Smooth lines and clean edges provide an attractive, contemporary appearance.

Product Application

Ideal as a housing for video screens.
Flexible design provides panel mount or rack mount capabilities for a variety of applications.
Generally used in combinations with other modular console components (i.e. base, pedestal, and / or desk).
Available in either Standard (supported by Base, Pedestal, or Standard Desk) or Deep (supported by Deep Desk only) format.
Smooth lines and clean edges provide an attractive, contemporary appearance.

Product Construction
Formed 14 gauge steel bodies with 14 gauge steel doors. Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel doors. Smooth, continuously welded seams without knockouts or holes. Body stiffeners are provided where required for increased strength and rigidity. Offered in 4 widths 24", 36", 48" and 60". Features solid sides and top, solid door on front (opens down) and back (opens up), and open bottom. Front door features sliding rod mechanism, which allows a 102° opening when in the lowered position. Rear door features manual, 3 position adjustable door stop which provides convenient support while door in open position. Formed lip on enclosure excludes flowing liquids and contaminants. Slotted quarter turn oil-tight latches secure the door, with optional tamper resistant and locking latches available. Stainless steel models utilize stainless steel hardware. Oil resistant gaskets are permanently secured. Features several internal stud locations for mounting of various accessories. A bonding screw is provided on the door and a grounding stud is provided in the enclosure.

Product Construction

Formed 14 gauge steel bodies with 14 gauge steel doors. Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel doors.
Smooth, continuously welded seams without knockouts or holes.
Body stiffeners are provided where required for increased strength and rigidity.
Offered in 4 widths 24", 36", 48" and 60".
Features solid sides and top, solid door on front (opens down) and back (opens up), and open bottom.
Front door features sliding rod mechanism, which allows a 102° opening when in the lowered position.
Rear door features manual, 3 position adjustable door stop which provides convenient support while door in open position.
Formed lip on enclosure excludes flowing liquids and contaminants.
Slotted quarter turn oil-tight latches secure the door, with optional tamper resistant and locking latches available.
Stainless steel models utilize stainless steel hardware.
Oil resistant gaskets are permanently secured.
Features several internal stud locations for mounting of various accessories.
A bonding screw is provided on the door and a grounding stud is provided in the enclosure.

Product Finish
Available in RAL 7035 light grey textured powder coating and natural stainless steel with a smooth, brushed finish. 24" Front window door available in same finishes.

Product Standards
UL 508A Type 3R, 4 and 12 (Stainless Steel, add 4X). CSA Type 3R, 4, 12 and 13 (Stainless Steel, add 4X). EIA RS-310-E. Complies with: NEMA Type 3R, 4 and 12 (Stainless Steel, add 4X) IEC 60529, IP66

Product Resources
View Product Data Sheet View Enclosure Customisation Options

Share On Social Media

2000 Turret Series Enclosures - Hammond Manufacturing Enclosures

Product Options

Part No	Colour	Height	Width	Depth	1+	10+	25+	More
Standard Depth Turret
2CLT202436	RAL 7035 Light Grey	508mm	610mm	314mm / 422mm	P.O.A.	P.O.A.	P.O.A.	More....
2CLT203636	RAL 7035 Light Grey	508mm	914mm	314mm / 422mm	P.O.A.	P.O.A.	P.O.A.	More....
2CLT204836	RAL 7035 Light Grey	508mm	1219mm	314mm / 422mm	P.O.A.	P.O.A.	P.O.A.	More....
2CLT206036	RAL 7035 Light Grey	508mm	1524mm	314mm / 422mm	P.O.A.	P.O.A.	P.O.A.	More....
2CST202436	RAL 7035 Light Grey	508mm	610mm	314mm / 422mm	P.O.A.	P.O.A.	P.O.A.	More....
2CST203636	RAL 7035 Light Grey	508mm	914mm	314mm / 422mm	P.O.A.	P.O.A.	P.O.A.	More....
2CST204836	RAL 7035 Light Grey	508mm	1219mm	314mm / 422mm	P.O.A.	P.O.A.	P.O.A.	More....
2CST206036	RAL 7035 Light Grey	508mm	1524mm	314mm / 422mm	P.O.A.	P.O.A.	P.O.A.	More....
Extra Deep Turret
2CLT202443	RAL 7035 Light Grey	508mm	610mm	422mm / 592mm	P.O.A.	P.O.A.	P.O.A.	More....
2CLT203643	RAL 7035 Light Grey	508mm	914mm	422mm / 592mm	P.O.A.	P.O.A.	P.O.A.	More....
2CLT204843	RAL 7035 Light Grey	508mm	1219mm	422mm / 592mm	P.O.A.	P.O.A.	P.O.A.	More....
2CLT206043	RAL 7035 Light Grey	508mm	1524mm	422mm / 592mm	P.O.A.	P.O.A.	P.O.A.	More....
2CST202443	RAL 7035 Light Grey	508mm	610mm	422mm / 592mm	P.O.A.	P.O.A.	P.O.A.	More....
2CST203643	RAL 7035 Light Grey	508mm	914mm	422mm / 592mm	P.O.A.	P.O.A.	P.O.A.	More....
2CST204843	RAL 7035 Light Grey	508mm	1219mm	422mm / 592mm	P.O.A.	P.O.A.	P.O.A.	More....
2CST206043	RAL 7035 Light Grey	508mm	1524mm	422mm / 592mm	P.O.A.	P.O.A.	P.O.A.	More....
Please visit individual product page for more detailed information

Hammond Manufacturing - Customisation Services

Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.

Why choose Hammond Manufacturing to modify your enclosure
Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified. Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges. Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable. Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.

Why choose Hammond Manufacturing to modify your enclosure

Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.

Popular modification services offered:
Holes Cutouts Tapping and countersinking. Pressed-in hardware (Studs, Standoffs) Silk screening UV Printing Special colours Special length extrusions Pre-Installed accessories Available services vary by product
