Hammond Manufacturing Electrical Enclosures | Mild Steel - Wallmount Enclosures | HN4 WM Range

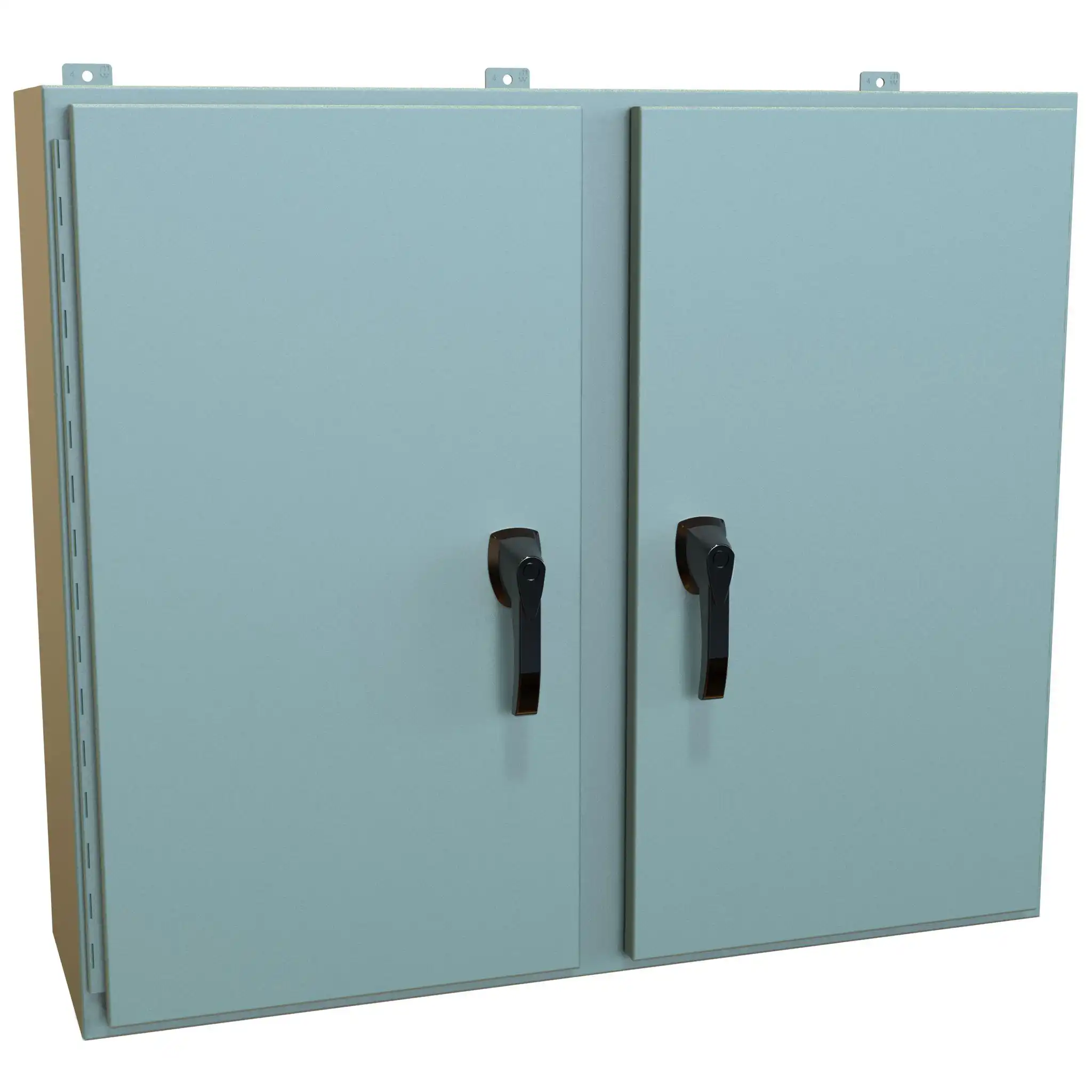

HN4 WM Series Type 4 Two Door Wallmount Enclosures

Continuous Hinge Door With Handle

Product Application:

Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Product Construction:

Formed 12 gauge steel.
Smooth, continuously welded seams without knockouts, cutouts or holes.
Doors are supported with heavy gauge continuous hinges.
3-pt padlocking door handle.
Seamless poured-in place gasket.
A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
Center post is removable for easy installation of the inner panel.

Product Finish:

Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 grey powder coating.
Removable inner panel is finished in white powder coating.

Product Standards:

UL 508A Type 3R, 4 and 12.
CSA Type 3R, 4 and 12.
Complies with:
- NEMA Type 3R, 4, 12 and 13
- IEC 60529, IP66

Product Resources:

View Product Data Sheet
View Customisation Options

Share This Product

Hammond Manufacturing Electrical Enclosures

KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you.

View the Hammond Manufacturing Electrical Enclosures Range
View the Hammond Manufacturing Electrical Enclosures Price List

Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:

Hammond Manufacturing Enclosures Range
Hammond Manufacturing Power Distribution Range
Hammond Manufacturing Rack Systems Range
Hammond Manufacturing Transformers Range
Ritec Plastic Enclosures Range

What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosure and accessories (where applicable). All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of holes and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. For more information on customisation services, please contact us.

HN4 WM Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd

Product Options

Part No	Product Information	1+	10+	25+	More
HN4WM24428GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM24488GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM304210GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM304810GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM306010GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM364212GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM364812GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM366012GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM424212GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM424812GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM426012GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
HN4WM484812GY	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
For pricing and availability please contact us

Hammond Manufacturing - Customisation Services

Modified Electronic Enclosures

Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.

Hammond Manufacturing Customisation Services

Why choose Hammond Manufacturing to modify your enclosure

Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.

Popular modification services offered:

Holes
Cutouts
Tapping and countersinking.
Pressed-in hardware (Studs, Standoffs)
Silk screening
UV Printing
Special colours
Special length extrusions
Pre-Installed accessories
Available services vary by product
