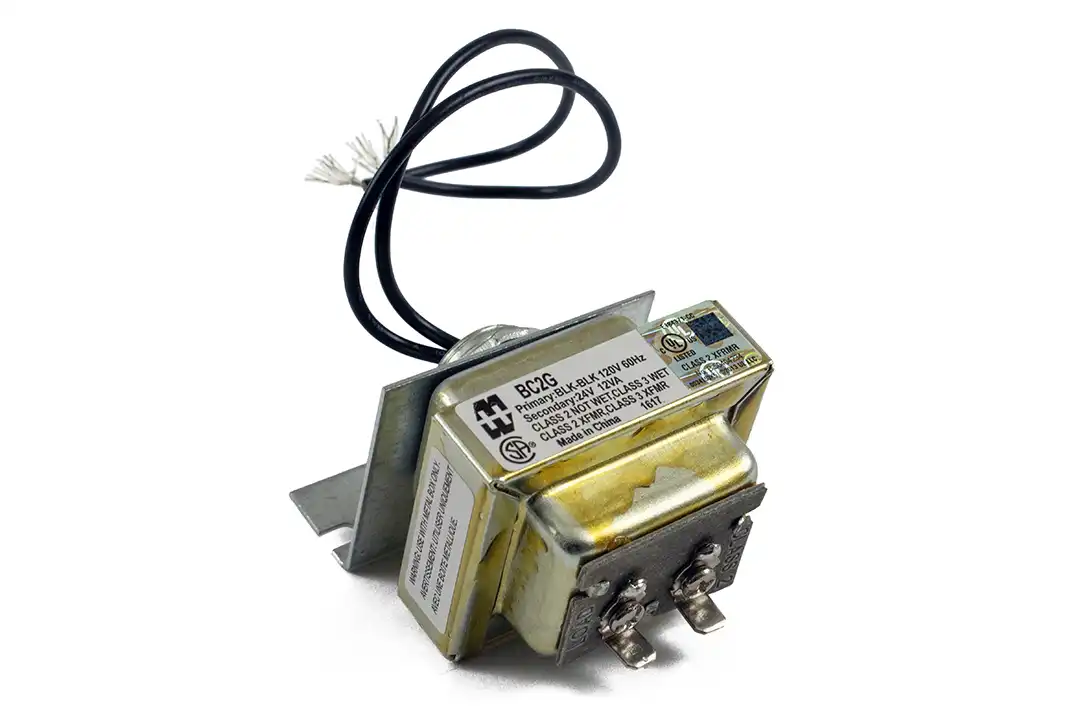

BA-C-D-E Series Class 2 Energy Limiting Small Box Mount
Product Features
  • Used in chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.
  • Rugged, low noise, cool running design, indoor use only.
  • Stripped wire input (primary) leads, screw terminal/quick fit tab terminal output (secondary).
  • Nipple locknut mount for box installation, complete with locknut and mounting bracket.
  • Input leads are black, on 240V models 240V lead is red. All models are 60 Hz. - inherently limited - no fuses or circuit breakers.
  • UL listed #E184371 - Except for part numbers BE2F and BE7G.
  • CSA certified (209651).
Product Resources
Hammond Manufacturing Transformers
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Transformers product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product, simply call (+44) 01535 636856 or E-Mail:, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the: What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosure and accessories (where applicable). All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of holes and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. For more information on customisation services, please contact us.
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn
BA-C-D-E Series - Hammond Manufacturing Transformrers at KGA Enclosures Ltd
Product Options
Part No A.C. Input (Primary) V (RMS) A.C. Output Secondary (RMS) V A.C. Output Secondary (RMS) A Power Rating VA 1+ 10+ 25+ More
BA2DA120100.55 £12.69 £11.68 £11.43 More
BC2DA120101.212 £12.69 £11.68 £11.43 More
BC2F120160.7512 £12.69 £11.68 £11.43 More
BC2G120240.512 £12.69 £11.68 £11.43 More
BD2E120121.6720 £13.08 £12.03 £11.77 More
BD2EE120141.4320 £13.08 £12.03 £11.77 More
BD2F120161.2520 £13.08 £12.03 £11.77 More
BD2FF120181.1120 £13.08 £12.03 £11.77 More
BD2G120240.83320 £13.08 £12.03 £11.77 More
BD5F240161.2520 £13.08 £12.03 £11.77 More
BD5G240240.8320 £13.08 £12.03 £11.77 More
BE2F12016.52.4240 £14.36 £13.21 £12.92 More
BE2G120241.6740 £14.36 £13.21 £12.92 More
BE5DG208/240241.6740 £14.36 £13.21 £12.92 More
BE5G240241.6740 £28.36 £26.09 £25.53 More
BE7G347241.6740 £14.36 £13.21 £12.92 More
Please visit individual product page for more detailed information
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
