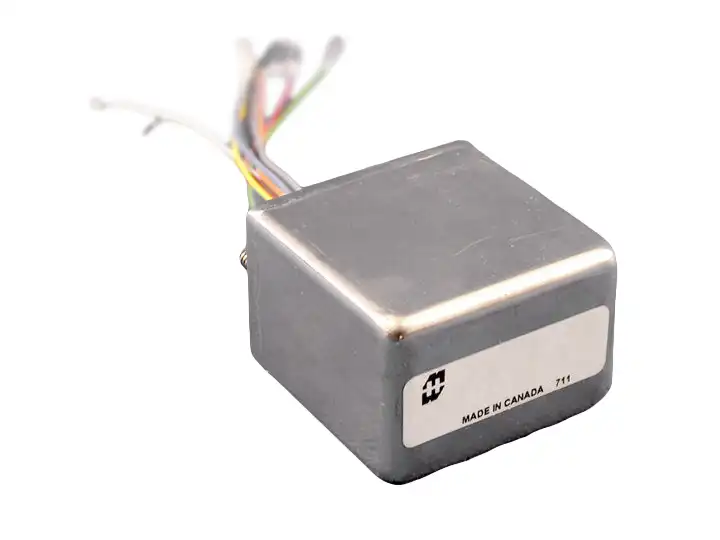

800A Series Audio Broadcast Quality
Product Features
  • Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with hardware.
  • Includes wire leads (minimum length of 4").
  • Frequency response +/- 0.5 db max. from 50 Hz. to 15 Khz.
  • Insertion loss of apx. 1 db.
  • Maximum power level +15 dbm. (except 841A, 842A and 844A which are +20 dbm) with specified characteristics, or higher levels with reduced low frequency performance.
  • Electrostatic shield between pri. and sec.
  • Humbucking construction.
  • Balanced split windings on pri. and sec. for circuit versatility. Primary may be used as a secondary and vice versa for impedance matching.
  • Overall dimensions 1.75" (44.5mm) wide x 1.25" (31.8mm) deep x 2.56" (65mm) high max.
  • Shipping weight 0.5 lbs (0.2 kg).
Product Resources
Hammond Manufacturing Transformers
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Transformers product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product, simply call (+44) 01535 636856 or E-Mail:, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the: What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosure and accessories (where applicable). All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of holes and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. For more information on customisation services, please contact us.
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn
800A Series - Hammond Manufacturing Transformrers at KGA Enclosures Ltd
Product Options
Part No Application Nominal Impedance (Ohms) Primary Nominal Impedance (Ohms) Secondary Max. Primary D.C. Unbalanced Current (ma.) 1+ 10+ 25+ More
801AIsolating, Matching*50/20050/2000.8 £96.24 £88.54 £86.61 More
802AIsolating, Matching*50/200 (60/240)125/500 (150/600)0.8 £96.24 £88.54 £86.61 More
804AIsolating, Matching, Hybrid*125/500 (150/600)125/500 (150/600)0.5 £96.24 £88.54 £86.61 More
806ADynamic MIC or Voice Coil to Grid*7.5/3010K/40K1.6 £96.24 £88.54 £86.61 More
807ADynamic MIC or Voice Coil to Base*7.5/30600/24001.6 £96.24 £88.54 £86.61 More
808AMIC or Mixer to Single or P.P. Grid*50/20010000/400000.6 £105.58 £97.14 £95.03 More
809AMIC to Mixer to Base*50/200600/24000.6 £105.58 £97.14 £95.03 More
812ALine or 150 ohm MIC to 1 or 2 Grids*125/500 (150/600)10K/40K (12K/48K)0.4 £105.58 £97.14 £95.03 More
813ALine or 150 ohm MIC to Base*125/500 (150/600)600/2400 (720/2880)0.4 £105.58 £97.14 £95.03 More
832AInterstage (ratio 1:2)5K/20K20K/80K0 £105.58 £97.14 £95.03 More
834AInterstage (ratio 1:4)5K/20K10K/40K0 £105.58 £97.14 £95.03 More
835AInterstage (ratio 1:1)10K/40K10K/40K0 £105.58 £97.14 £95.03 More
841A** P.P. Plates to Line5K/20K50/2000 £105.58 £97.14 £95.03 More
842A** P.P. Plates to Line5K/20K (6K/24K)125/500 (150/600)0 £105.58 £97.14 £95.03 More
844A** P.P. Plates to Line10K/40K (12K/48K)125/500 (150/600)0 £105.58 £97.14 £95.03 More
Please visit individual product page for more detailed information
