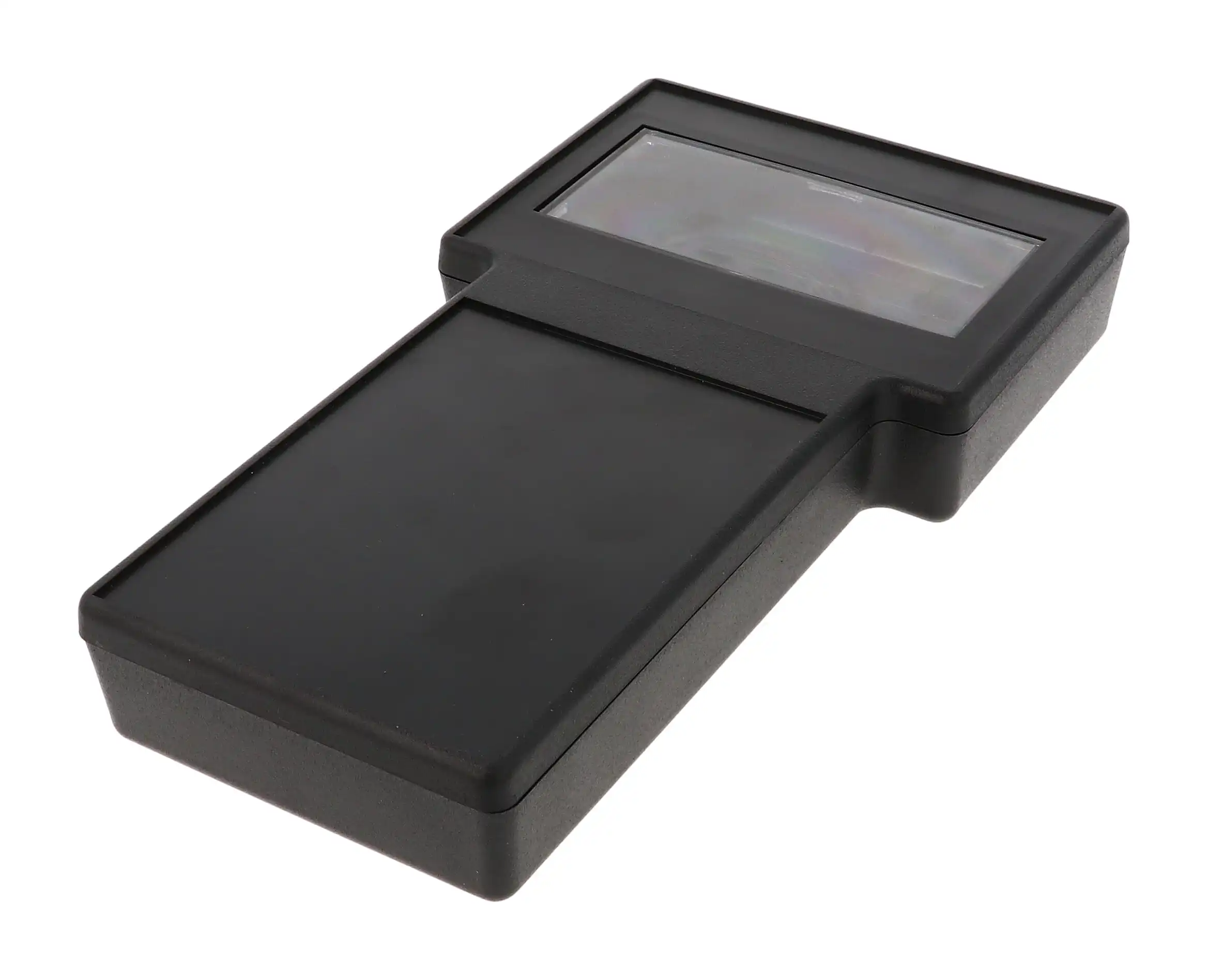

1592 Series "T" Display Enclosures

ABS Plastic Enclosures and Accessories

Product Features:

Perfect for instrument or mobile data enclosures requiring a keypad and display.
Available with either a solid display area or an opening with a clear lens.
- Solid display area is 122mm x 85mm (4.8" x 3.4") and will accommodate display boards up to 118mm x 60mm (4.6" x 2.37")
- Clear polycarbonate lens 102mm x 45mm (4.0" x 1.77") and a plain mylar mask kit allows for installation of a wide variety of display boards with the protection of the clear lens and dressed by the mylar frame
- The lens fits snugly into the case and provides protection from dirt and dust
Moulded from flame retardant ABS plastic, choice of black or grey (material carries a UL flammability rating of 94V-0).
The back of the case has been designed to accept a magnetic strip or "hoop and loop" fabric mounting tab.
The display area has been insert tooled in order to provide the capability of custom moulding a low-cost display area to specific requirements.

Product Resources:

View Product Data Sheet
View Customisation Options

Share This Product

Hammond Manufacturing Enclosures

KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you.

View the Hammond Manufacturing Enclosures Range
View the Hammond Manufacturing Enclosures Price List

Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:

Hammond Manufacturing Electrical Enclosures Range
Hammond Manufacturing Power Distribution Range
Hammond Manufacturing Rack Systems Range
Hammond Manufacturing Transformers Range
Ritec Plastic Enclosures Range

What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosure and accessories (where applicable). All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of holes and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. For more information on customisation services, please contact us.

1592 Series - Hammond Manufacturing Enclosures at KGA Enclosures Ltd

Product Options

Part No	Colour	Width	Length	Depth	1+	10+	25+	More
1592ETCDBK	Black	130mm / 95mm5.10" / 3.73"	234mm9.21"	34mm1.35"	£10.48	£9.64	£9.43	More....
1592ETCDGY	Light Grey	130mm / 95mm5.10" / 3.73"	234mm9.21"	34mm1.35"	£10.48	£9.64	£9.43	More....
1592ETSDBK	Black	130mm / 95mm5.10" / 3.73"	234mm9.21"	34mm1.35"	£9.18	£8.44	£8.26	More....
1592ETSDGY	Light Grey	130mm / 95mm5.10" / 3.73"	234mm9.21"	34mm1.35"	£8.69	£7.99	£7.82	More....
For pricing and availability please contact us

Product Accessories

Gasket Kit

Part No	Colour	Product Information	1+	10+	25+	More
1592ETG	Black	Click link for more information	£1.92	£1.76	£1.72	More....
Please refer to the product data sheet for product compatibility

Hook and Loop Mounting Strip

Part No	Colour	Product Information	1+	10+	25+	More
1592ETV	Black	Click link for more information	£0.94	£0.86	£0.84	More....
Please refer to the product data sheet for product compatibility

Magnetic Mounting Strip

Part No	Colour	Product Information	1+	10+	25+	More
1592ETM	Black	Click link for more information	£2.87	£2.64	£2.58	More....
Please refer to the product data sheet for product compatibility

Rubber Feet

Part No	Colour	Product Information	1+	10+	25+	More
1592ETRF	Black	Click link for more information	£2.24	£2.06	£2.01	More....
Please refer to the product data sheet for product compatibility

Hammond Manufacturing - Customisation Services

Modified Electronic Enclosures

Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.

Hammond Manufacturing Customisation Services

Why choose Hammond Manufacturing to modify your enclosure

Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.

Popular modification services offered:

Holes
Cutouts
Tapping and countersinking.
Pressed-in hardware (Studs, Standoffs)
Silk screening
UV Printing
Special colours
Special length extrusions
Pre-Installed accessories
Available services vary by product
