118944 Series | Classic Transformers

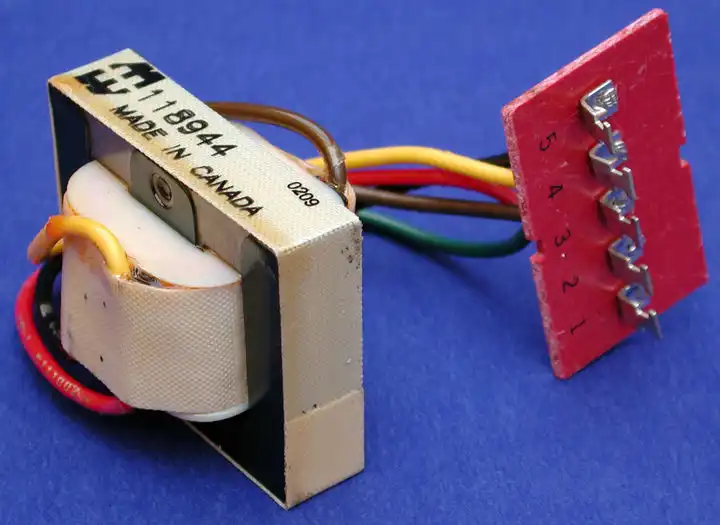

118944 Series Radiola Replacement Transformer

In response to requests from RCA Radiola III-A collectors Hammond developed a replacement audio transformer about 20 years ago. The original transformers are usually found with "open" windings due to the fine wire and high turns used, coupled with age. These replacement units were originally sold through the AWA (The Antique Wireless Association). Hammond resurrected the design and are now offering them once again to collectors.

Product Features
This is a universal replacement type - it will replace ANY of the 3 audio transformers used (1st audio driver, second audio - phase splitter stage or output transformer), by correctly connecting the 5 lugs. A pin out and connection diagram is included. The case from the old transformer will fit this new unit perfectly. The terminal board (included) is a duplicate of the original. Primary: 4,000 turns, #41 wire (lugs 4 and 2). Secondary: 12,000 turns C.T., #41 wire (lugs 5 and 1, lug 3 is C.T. connection). Termination: Solder lugs on a 1 3/4" x 1" terminal board with 4 - 5" connecting leads. Mounting: Uses existing case.

Product Features

This is a universal replacement type - it will replace ANY of the 3 audio transformers used (1st audio driver, second audio - phase splitter stage or output transformer), by correctly connecting the 5 lugs. A pin out and connection diagram is included.
The case from the old transformer will fit this new unit perfectly.
The terminal board (included) is a duplicate of the original.
Primary: 4,000 turns, #41 wire (lugs 4 and 2).
Secondary: 12,000 turns C.T., #41 wire (lugs 5 and 1, lug 3 is C.T. connection).
Termination: Solder lugs on a 1 3/4" x 1" terminal board with 4 - 5" connecting leads.
Mounting: Uses existing case.

Product Resources
View Product Data Sheet

Share On Social Media

Hammond Manufacturing Transformers
To purchase any item or for more information simply call 01535 636856 (Outside UK +44 1535 636856) or email sales@kgaenclosures.com. KGA Enclosures Ltd are fully authorised distributors of the entire Hammond Manufacturing product ranges including the Hammond Manufacturing Transformers range. All Hammond Manufacturing products are available from KGA Enclosures at great competitive pricing. View the Hammond Transformers Range View the Hammond Transformers Price List Or view the related product ranges from Hammond Manufacturing which are all available at KGA Enclosures: View the Hammond Enclosures Range View the Hammond Electrical Enclosures Range View the Hammond 19" Rack Systems Range View the Ritec Plastic Enclosures Range

Hammond Manufacturing Transformers

To purchase any item or for more information simply call 01535 636856 (Outside UK +44 1535 636856) or email sales@kgaenclosures.com.

KGA Enclosures Ltd are fully authorised distributors of the entire Hammond Manufacturing product ranges including the Hammond Manufacturing Transformers range. All Hammond Manufacturing products are available from KGA Enclosures at great competitive pricing.

View the Hammond Transformers Range
View the Hammond Transformers Price List

Or view the related product ranges from Hammond Manufacturing which are all available at KGA Enclosures:

View the Hammond Enclosures Range
View the Hammond Electrical Enclosures Range
View the Hammond 19" Rack Systems Range
View the Ritec Plastic Enclosures Range

118944 Series - Hammond Manufacturing Transformers

Product Options

Part No	Height	Width	Depth	Lamination Core Size	1+	10+	25+	More
118944	48mm	43mm	35mm	16mm x 13mm	£46.16	£42.46	£41.54	More....
Please visit individual product page for more detailed information
